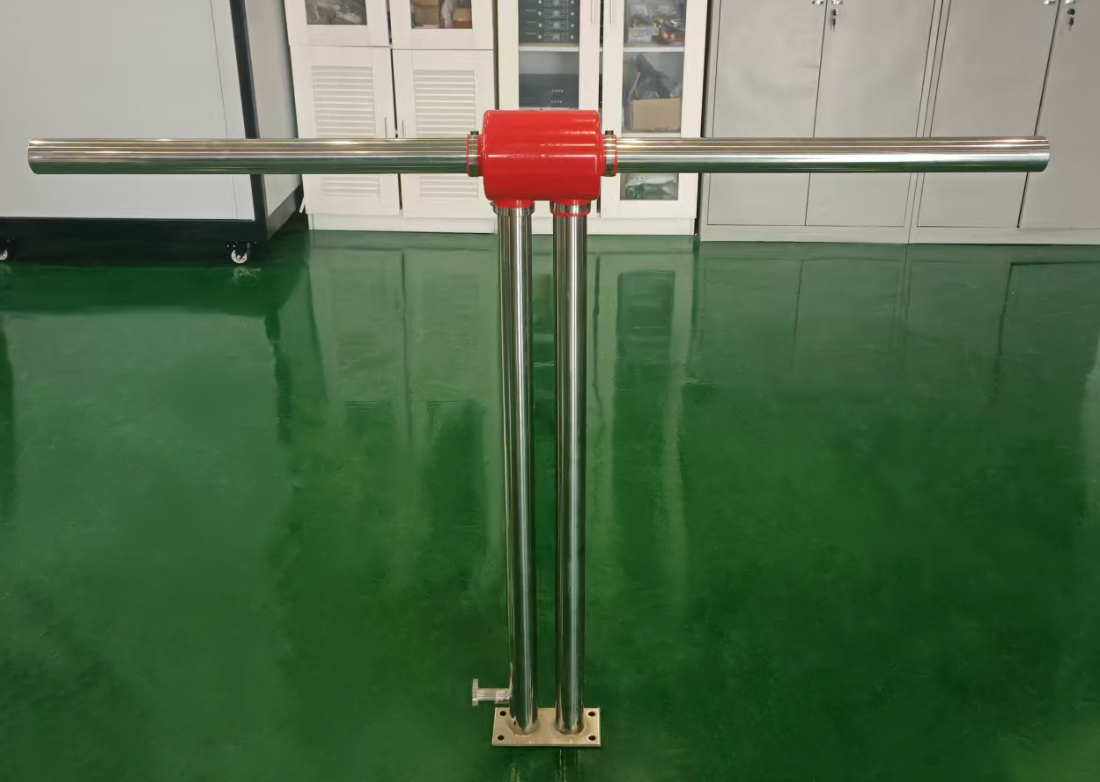

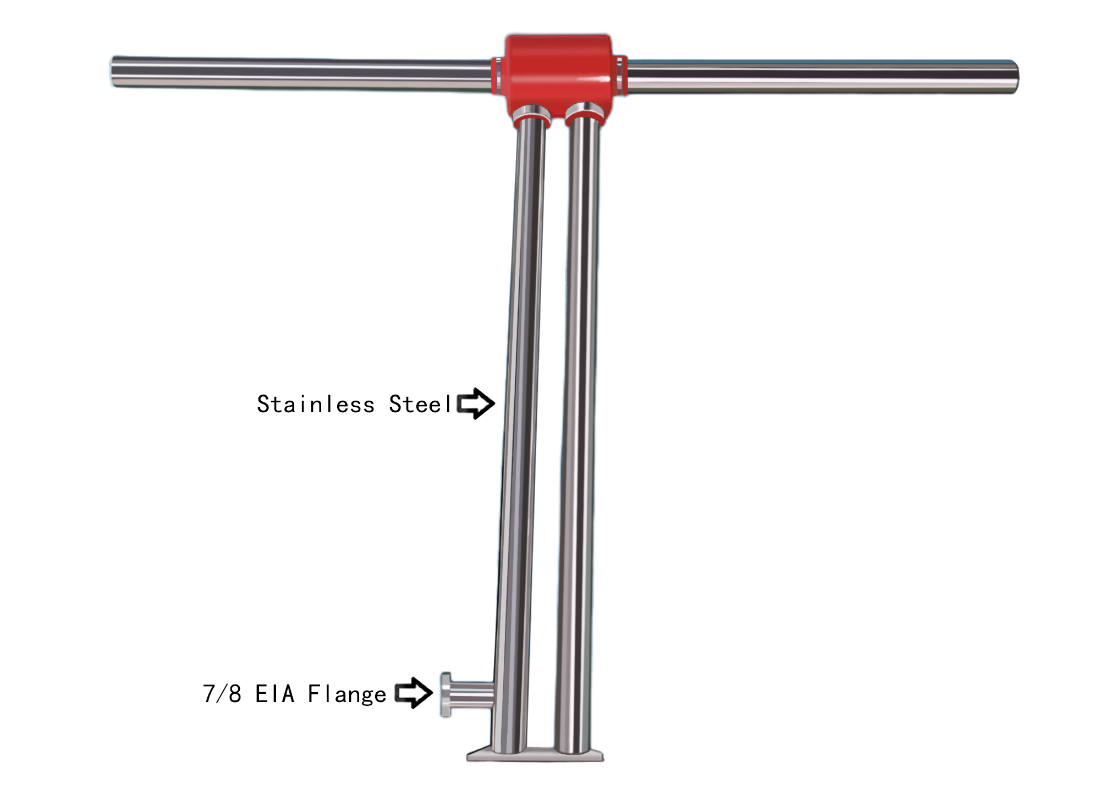

FM Single-dipole Antenna

Our FM Single-dipole antenna is meticulously crafted with high-quality materials and has excellent electrical performance. It operates in the UHF frequency band, featuring a wide bandwidth, high gain, and stable and reliable signal transmission. Its sturdy and durable design can adapt to various harsh environments, making it a trustworthy choice for you.

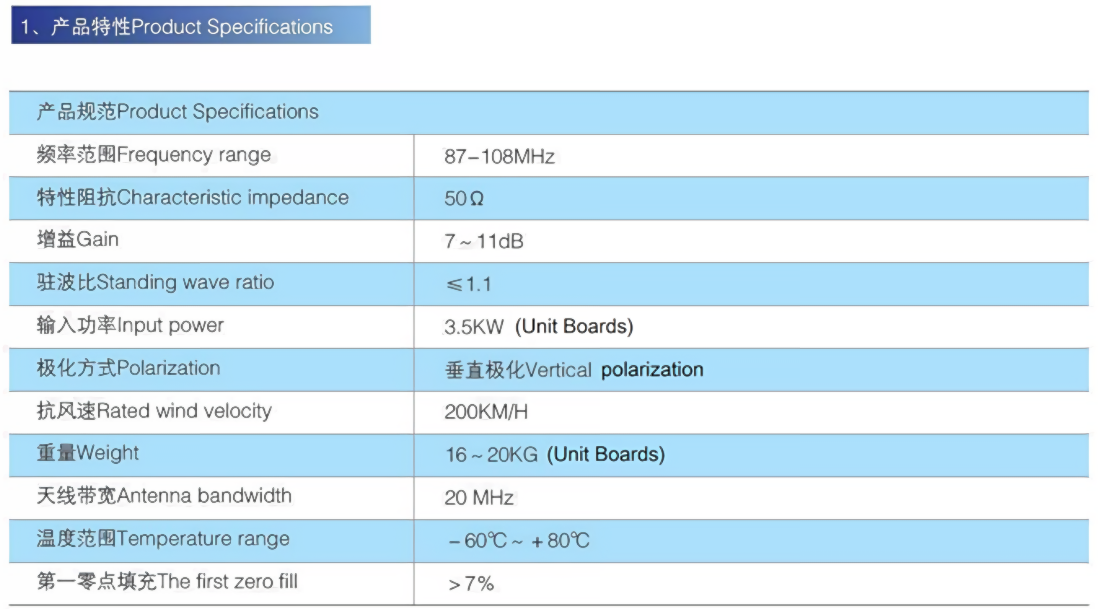

Product Specification
Serial Number Projects Unit Parameters
1 Frequency Range MHz 87~108
2 Characteristic Impedance Ω 50
3 Gain dB 7~11
4 Input Power KW 3.5(Unit Board)
5 Standing Wave Ratio / ≤1.1(Unit Board)
6 Polarization / Vertical
7 Rated Wind Velocity KM/H 200
8 Weight KG 16-20(Unit Board)
9 Antenna Bandwidth MHz 20
10 Tempreture Range ℃ -60~+80
11 First Zero Fill % >7

Our antenna equipment adopts advanced materials and techniques. While improving the efficiency of signal transmission, it also takes into account durability and aesthetics, ensuring that every customer can experience the perfect combination of technology and art.

Sara Wilsson

Designer

FEQ

Q1: How do I test the product after I receive it?

A1: For device testing, you need to prepare a network analyzer, first. Then, place the antenna in an open area and raise the antenna reflector to a height of 1.5 meters above the ground for testing.

Q2: When I got the antenna, but I don't know how to install it ,What should I do?

A2: We will take a video of the antenna installation for you, and if you still have problems, we will hold an online meeting to solve the problem for you.

Q3: If problems happen to this antenna, what should I do?

A3: Our warranty period is 1 year from the date of signing the contract, during which if there is any problem with the antenna, our technicians will solve it for you in the form of an online meeting.

Q4: When I get this antenna ,for this antenna working ,any other parts I need to prepare?

A4: For antennas only, we have provide all parts, you don't need to prepare, only install is ok.

Q5: Can you provide me with a sample?

A5: Of course, we can provide you with samples, and we support to provide paid samples.In addition, if you want to have a better understanding of the product, you can come to our factory to investigate, and our technicians will introduce the products to you in detail.
